How to find out image verification code when you sign to microseven.com?
You need to complete these 3 steps to sign to microseven.com to get your software authorization key.

How to setup M7-CX550WS and M7-CX550WS-IR CCD properties correctly?
You have to set up CCD Setting on M7-CX550WS and M7-CX550WS-IR correctly, the following screen shot displays the correct way, you have to use ELC on ALC/ELC field.

How to test wifi strength on M7 series cameras

To test it, go to properties, on Camera tab and Wireless Setting… sub tab page, click on search
The following screen shot is the search page. All the wifi strength should be greater than 60%

How to make audio sound saved in your avi file? After you setup sound in your avi file, then you can convert it on DVD. The application uses for Church where it makes recording video with sound and make their video on DVD to provide people who needs.

Here is the example, before you make recording, you have to set up audio format to g711u, see figure 1

Figure 1

M7CMS for Mac requires Mac OS X 10.7 or greater.

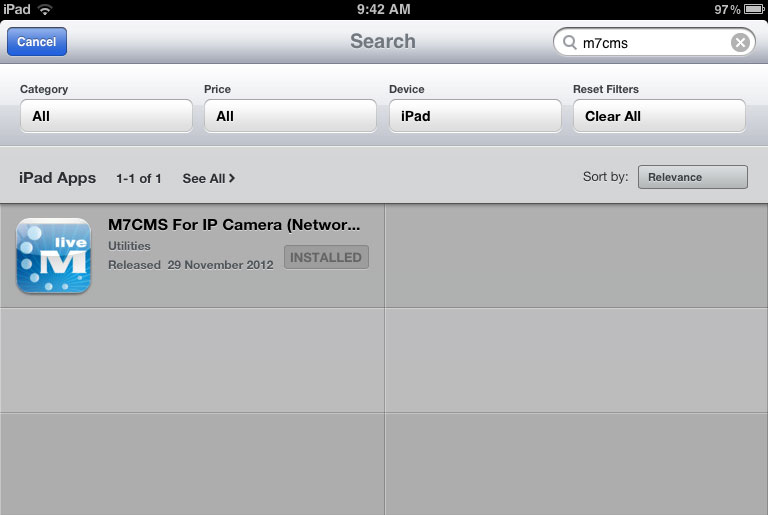

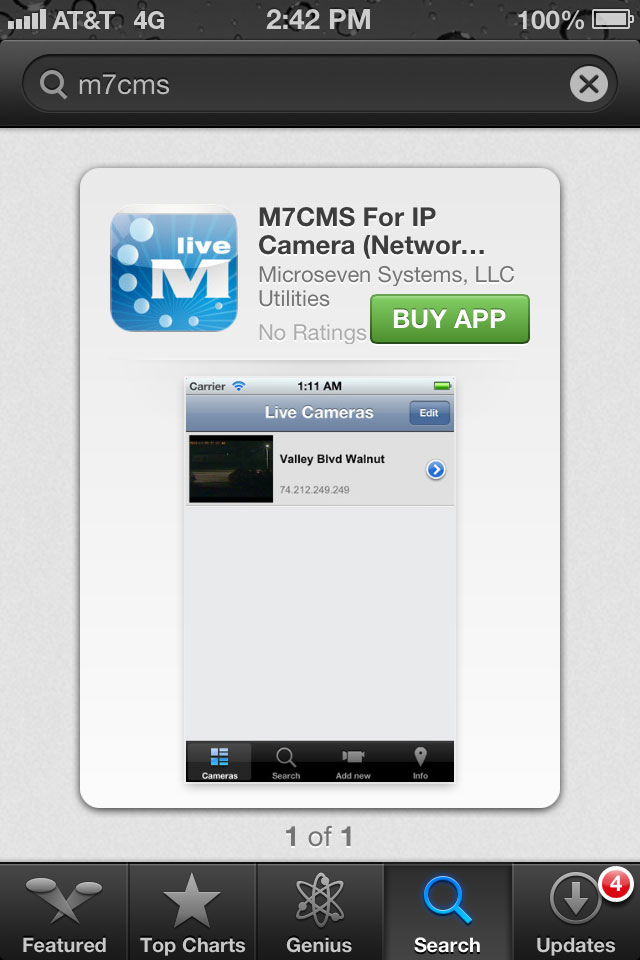

Step 1 Download M7CMS.dmg from www.microseven.com or from App Store

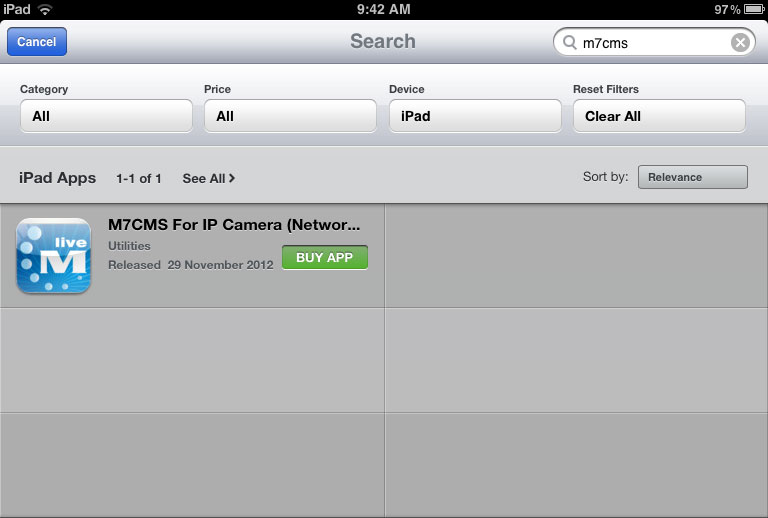

Download M7CMS, you can download it from www.microseven.com or from App Store.

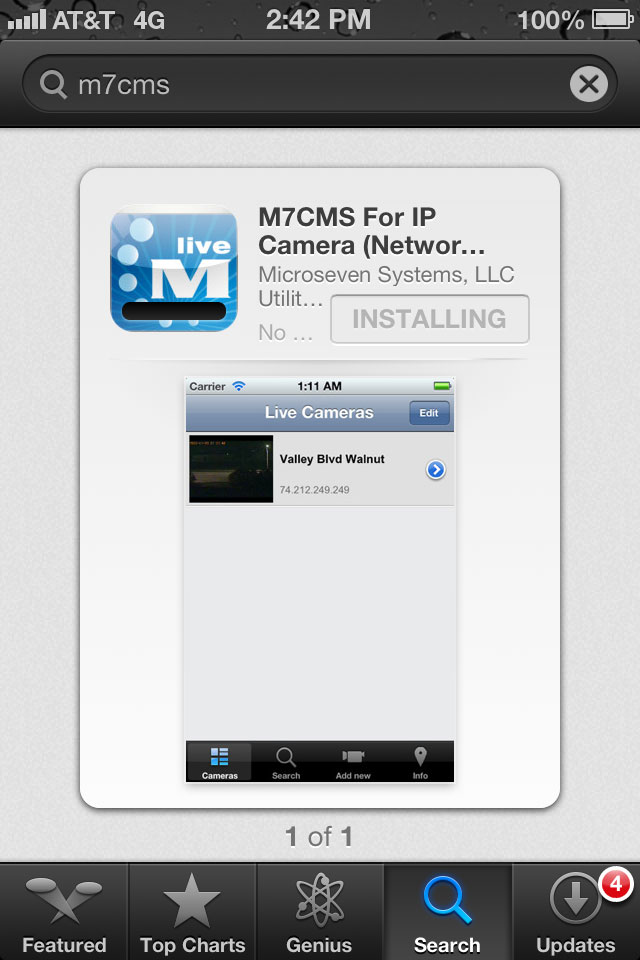

Step 2 Install M7CMS.dmg
Install M7CMS.dmg, click file M7CMS.dmg, you will find pop window in the following:

M7CMS for Mac

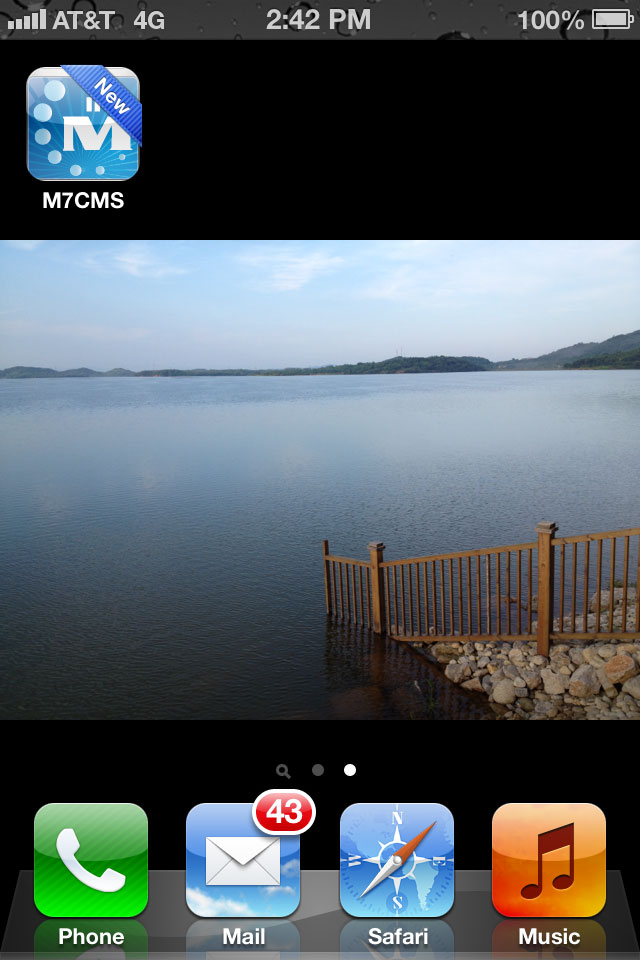

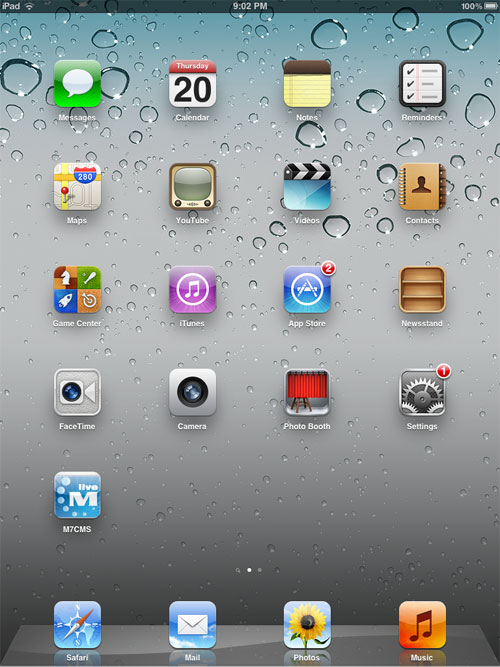

Step 3 Open M7CMS on your Launchpad
Open M7CMS on your Launchpad, click on M7CMS icon to open M7CMS

Step 4 M7CMS window opened

Button Up

Button To left

Button To right

Button Down

Button Start cruise

Button Stop cruise

Button Return to default preset

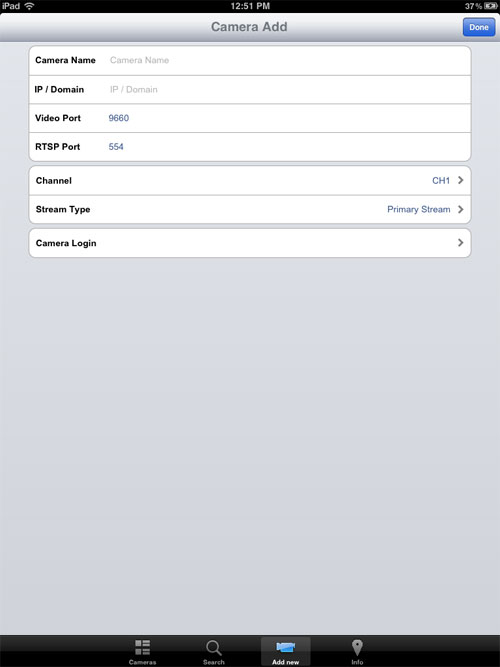

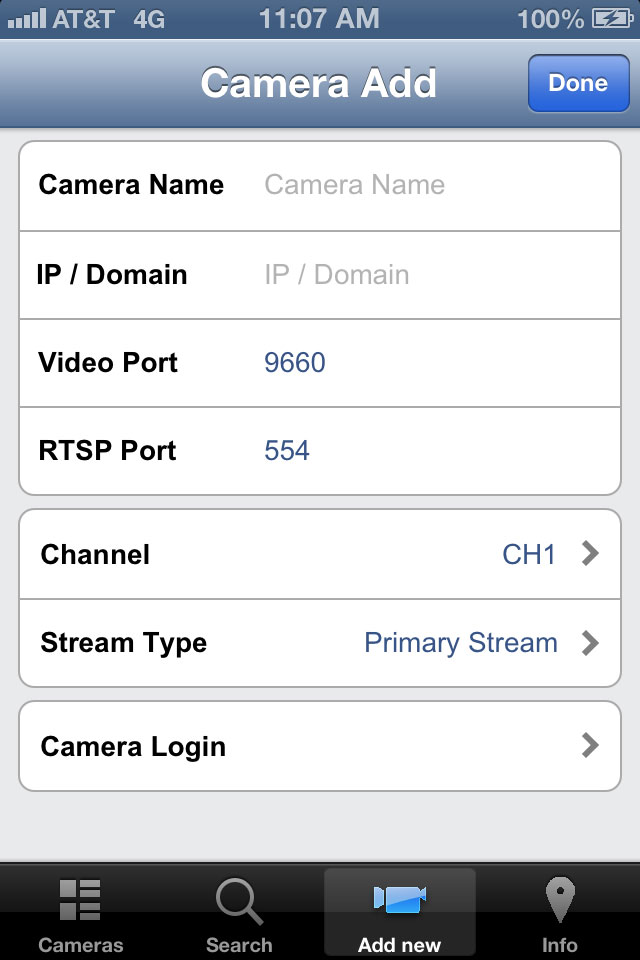

Step 5 Add cameras in M7CMS.

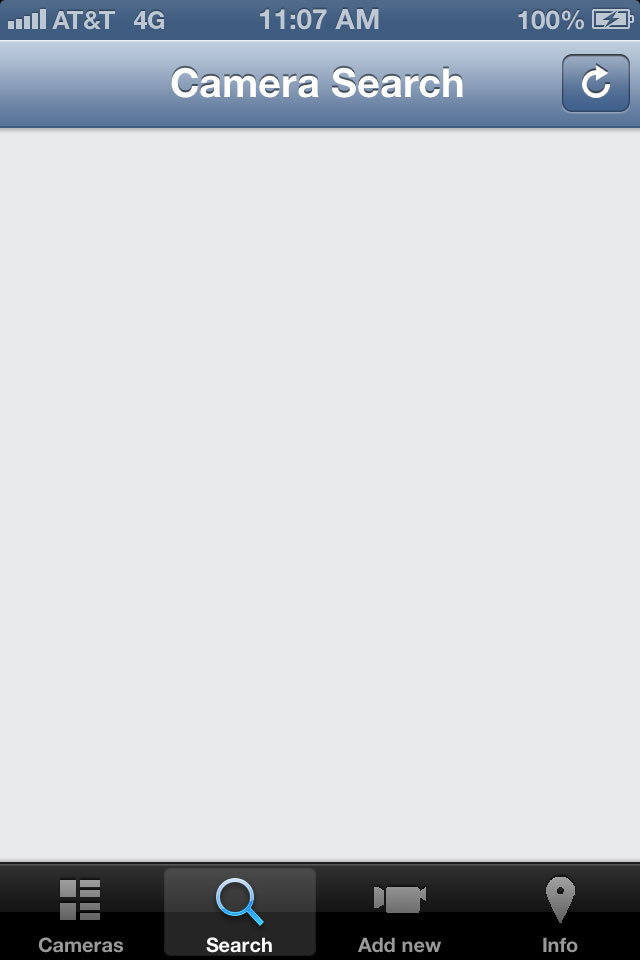

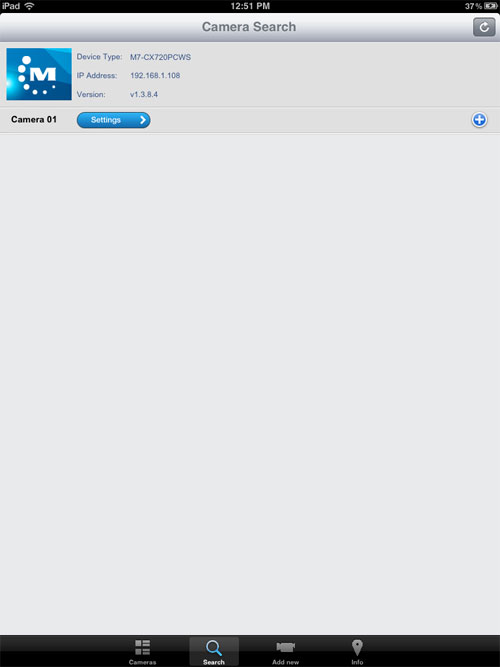

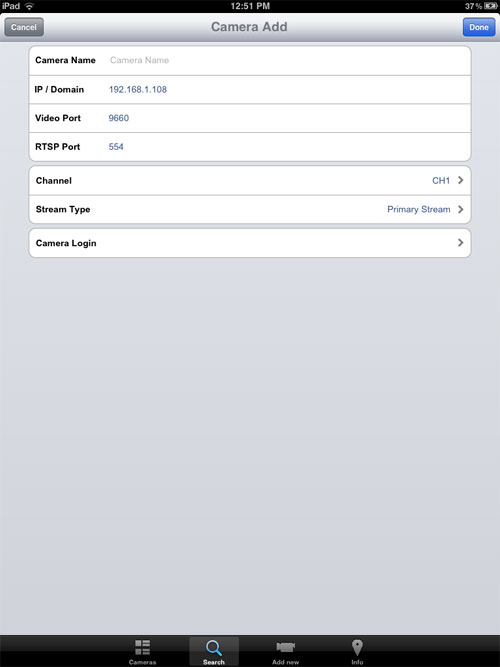

A pop window up, search camera in local network click on Search button

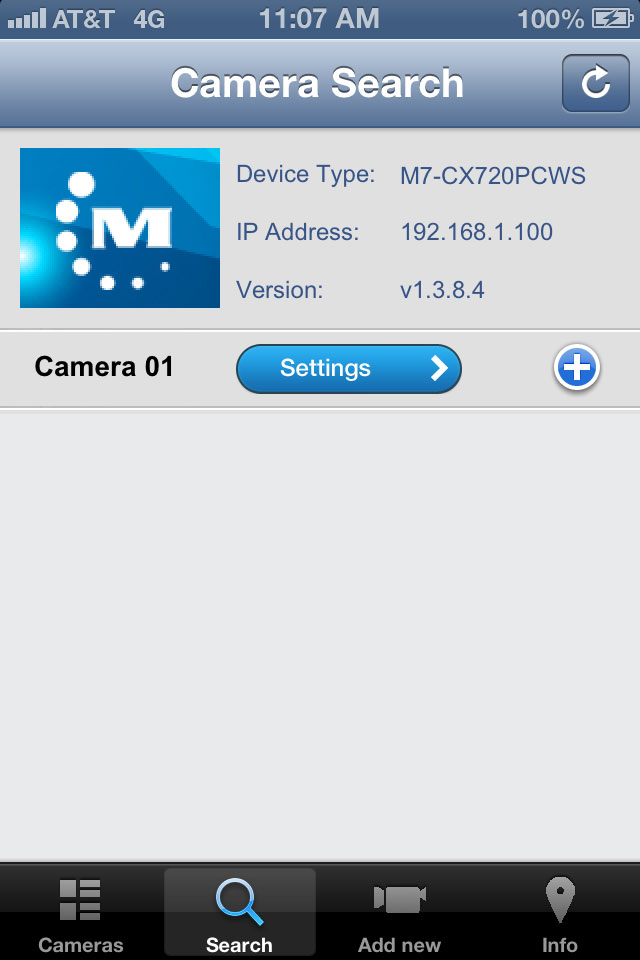

Do search click on Search button, if camera is on the network you will find it

To change IP address of the camera, click on Setup click, it will lead you to the next page

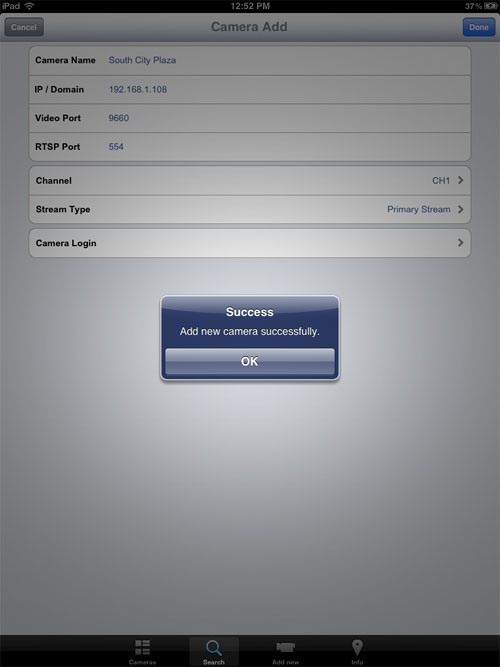

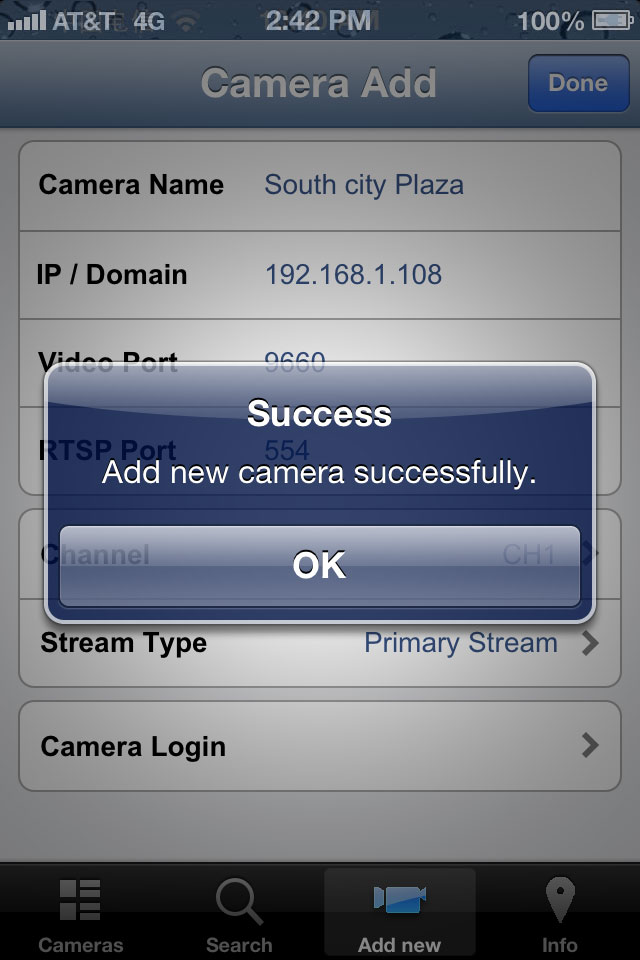

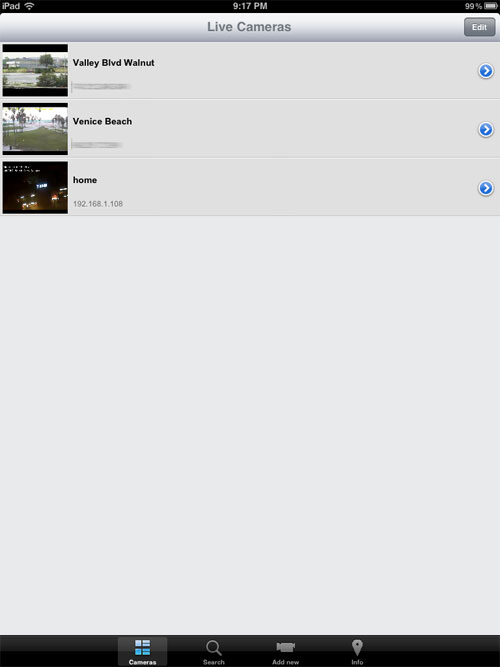

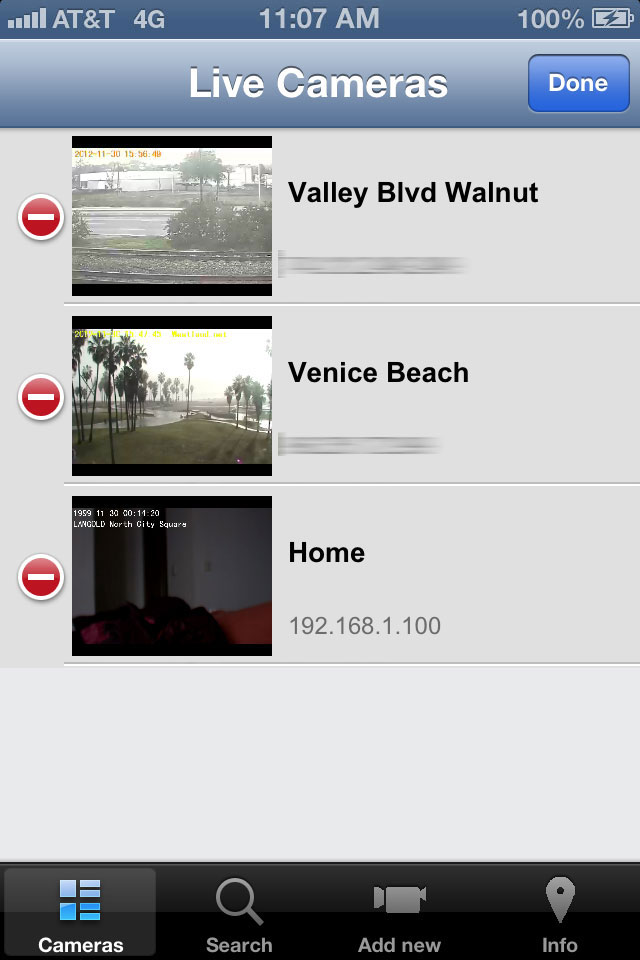

After finding camera, click on add, then cameras have been added in the following screen shot

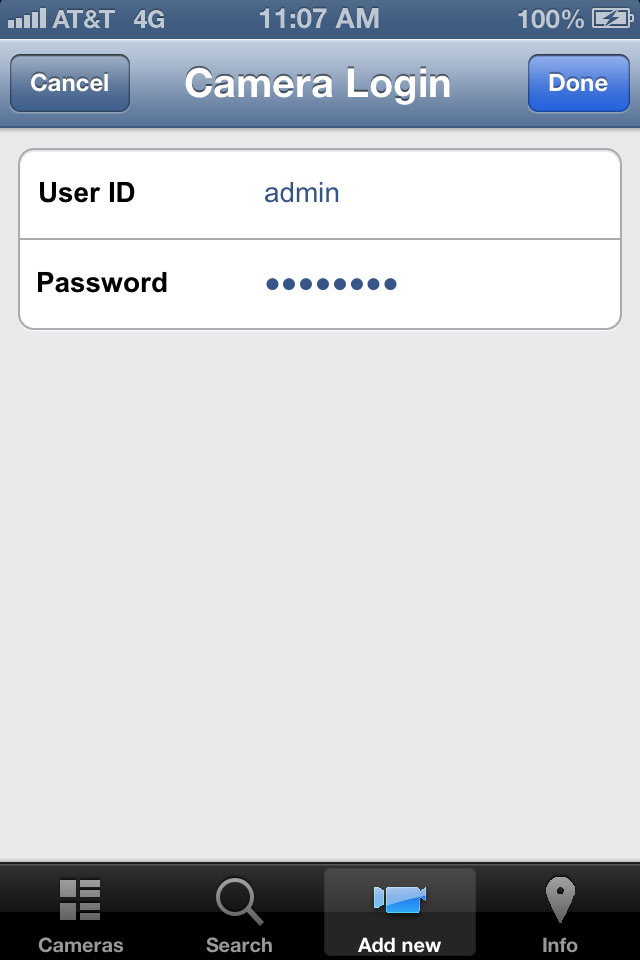

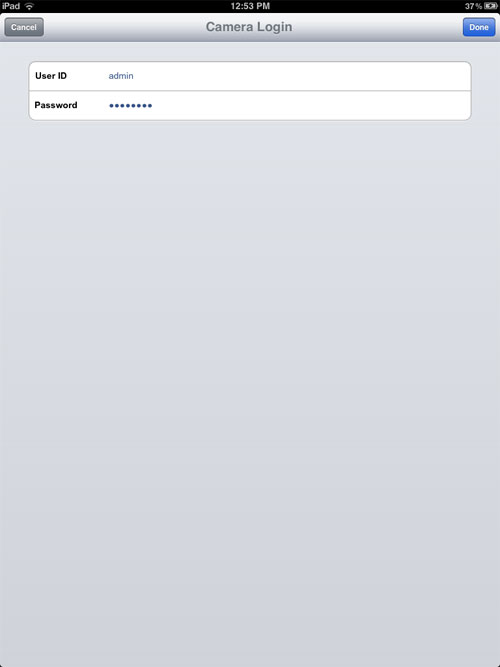

Add camera name into the field, enter the password if you are going to use your own password

Then click on Close button, you will get the following screen shot before you click on connect link

Step 6 Change properties of the camera

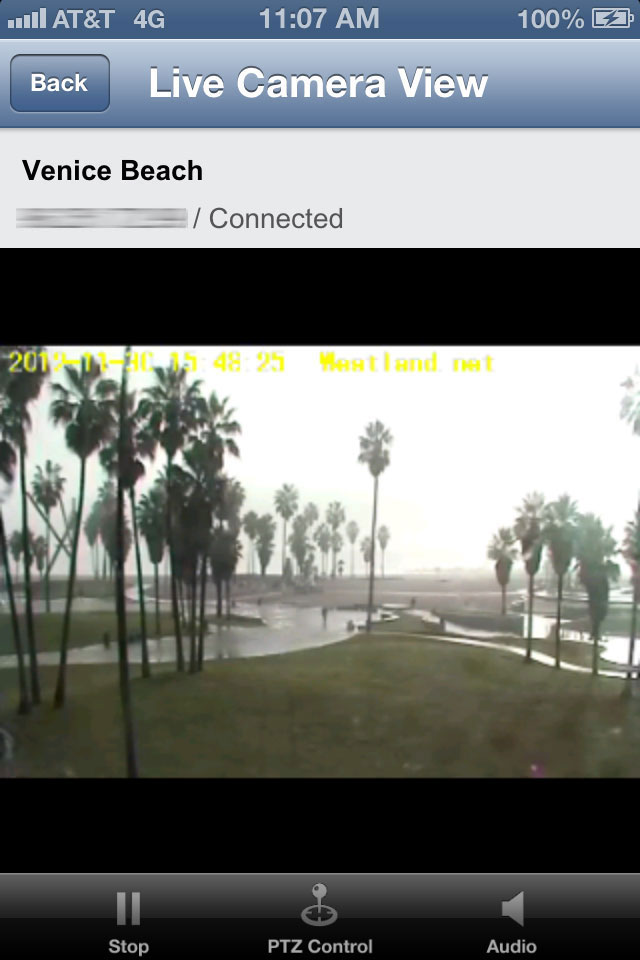

Starting live video in M7CMS by click on the link (a little link icon)

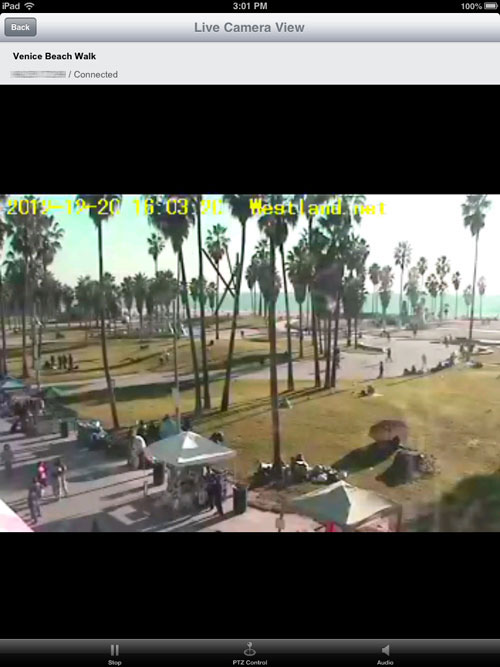

Then video is up running …

Click on Properties link, if you video is not show up

Properties – Network setting page, you will modify the IP address and their ports in this page

M7CMS for Mac is ready for downloading in www.microseven.com
Manual for using it will be released.
Mac OS X 10.7 or greater.
Only work for Microseven IP cameras.
To search camera IP address in the local network, find IP address of camera and modify IP address of camera.

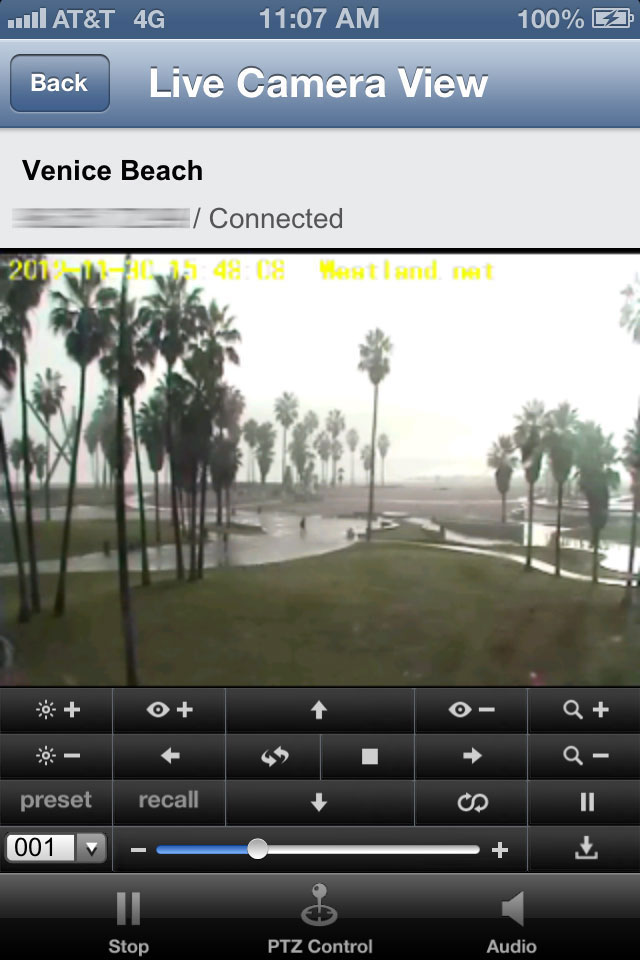

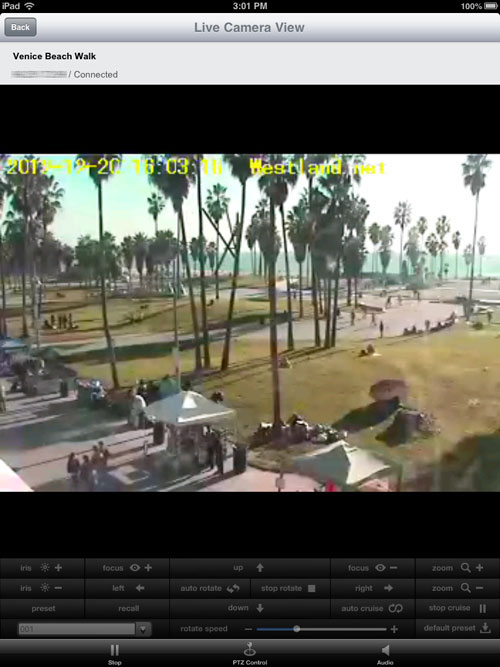

PTZ control on Mac OS X to do pan, tilt, and zoom remote Microseven IP dome camera.

Bug report to support@microseven.com

firmware v1.3.8.3 ( 12/02/2011 )

update content:
WPA-PSK -> WPA-PSK [TKIP]
WEP -> WEP [Shared Key]

How to correct date and time on the video OSD
Step 1: Open M7CMS on your PC, then go to the video which you want to correct the date and time. Open properties pop up and select on properties.

M7CMS properties

Step 2: Select tab “Camera” and sub tab “Name & Time” and then click on “Apply”.

camera setup

Step 3: A pop up window shows up, then click on Ok.

Step 4: Now, you will see date and time changed on video OSD.

1. Enter http://192.168.1.230 in the browser address bar，go to the following device information page

2. Choose Wireless tab to go to current device configuration page

   1. Wireless Mode, pull drop list and select ‘Access Point WDS’
   2. In WDS Peers, enter the corresponding MAC address of the remote device(s). If there are several remote devices, enter the MAC address for these several devices.
      The figure is shown there are three slave devices, and MAC are: 00:15:6d:5b:a9:69，00:15:6d:5b:a9:6a and 00:15:6d:5b:a9:6b
   3. Enter SSID
   4. Country Code should be current location. We are in United States, then we select United States
   5. Frequency List, set to Enable, click the Edit button, enter the following page, select Frequency in the list

   6. Wireless Security – Security set to ‘None’
   7. Click the Change button to complete the setup
3. Select the Network, to go to the network configuration page

   1. Network Mode to set to ‘Bridge’(Attention: must not be set to ‘Router’)
   2. Bridge IP Address to set to ‘Static’
   3. Device default IP Address is 192.168.1.230. It can be modified by new IP address.
   4. Enter Netmask, Gateway IP
   5. Click on ‘Change’ to complete the set up.
4. Repeat 2-3，complete other three slave devices Wireless and Network set up
   Three slave devices, the IP Addresses are 192.168.1.232, 192.168.1.232, 192.168.1.233
   ***Attention: master and slave devices IP address should be on the same network segment
