1. Enter http://192.168.1.230 in the browser address bar，go to the following device information page

2. Choose Wireless tab to go to current device configuration page

   1. Wireless Mode, pull drop list and select ‘Access Point WDS’
   2. In WDS Peers, enter the corresponding MAC address of the remote device(s). If there are several remote devices, enter the MAC address for these several devices.
      The figure is shown there are three slave devices, and MAC are: 00:15:6d:5b:a9:69，00:15:6d:5b:a9:6a and 00:15:6d:5b:a9:6b
   3. Enter SSID
   4. Country Code should be current location. We are in United States, then we select United States
   5. Frequency List, set to Enable, click the Edit button, enter the following page, select Frequency in the list

   6. Wireless Security – Security set to ‘None’
   7. Click the Change button to complete the setup
3. Select the Network, to go to the network configuration page

   1. Network Mode to set to ‘Bridge’(Attention: must not be set to ‘Router’)
   2. Bridge IP Address to set to ‘Static’
   3. Device default IP Address is 192.168.1.230. It can be modified by new IP address.
   4. Enter Netmask, Gateway IP
   5. Click on ‘Change’ to complete the set up.
4. Repeat 2-3，complete other three slave devices Wireless and Network set up
   Three slave devices, the IP Addresses are 192.168.1.232, 192.168.1.232, 192.168.1.233
   ***Attention: master and slave devices IP address should be on the same network segment


there are 4 ports on your dvs.
example, if your ip camera (microseven network camera) address is
192.168.1.201

then:

using 4 cameras feed rtsp to your zoneminder:
cam1 rtsp://192.168.1.201/ch=0
cam2 rtsp://192.168.1.201/ch=1
cam3 rtsp://192.168.1.201/ch=2
cam4 rtsp://192.168.1.201/ch=3

if it is single microseven network camera only
cam rtsp://192.168.1.201/

there are primary streaming is
rtsp://192.168.1.201/sl=0
and secondary streaming is
rtsp://192.168.1.201/sl=1

—
Channel [ch] and slave [slave] together in URL is
rtsp://192.168.1.201:554/ch=3slave=1

1. Connect camera router or switch in your local area network (LAN)

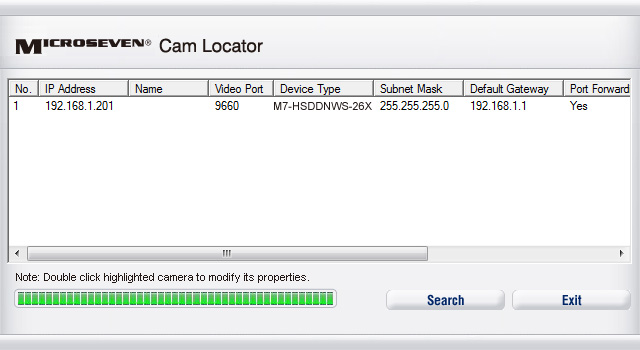

2. To find camera in your network using Microseven M7 cam locator

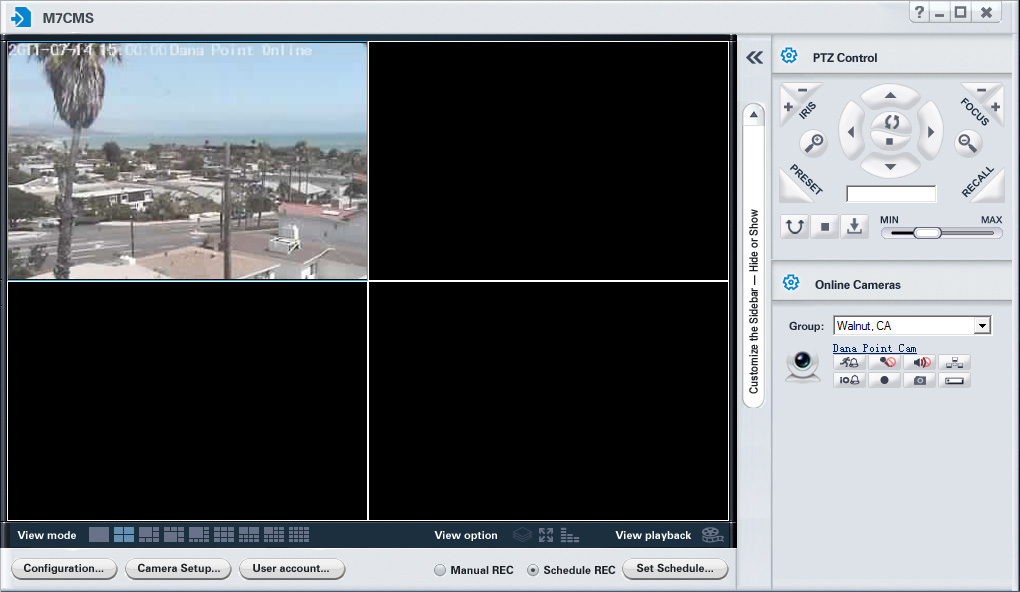

3. View camera in Microseven M7CMS software

4. Check camera RTSP port to see if it is opened, default RTSP port number is 554

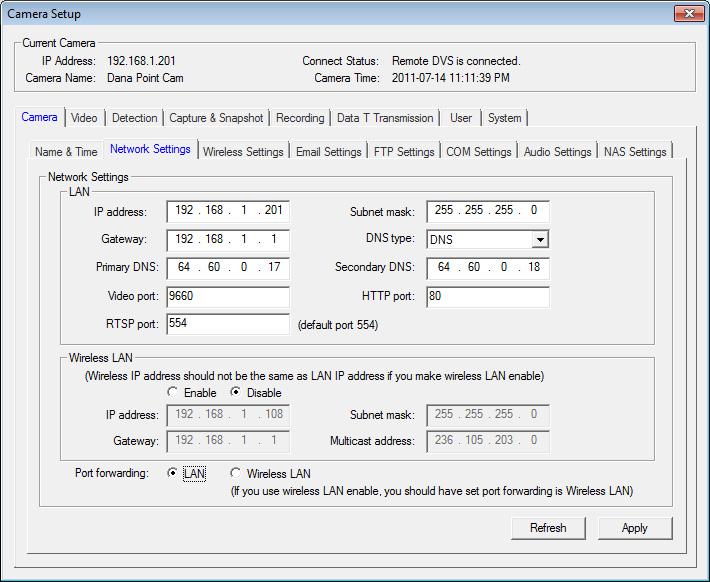

5. To set camera RTSP port to 554 using M7CMS by chick on properties, click on Apply

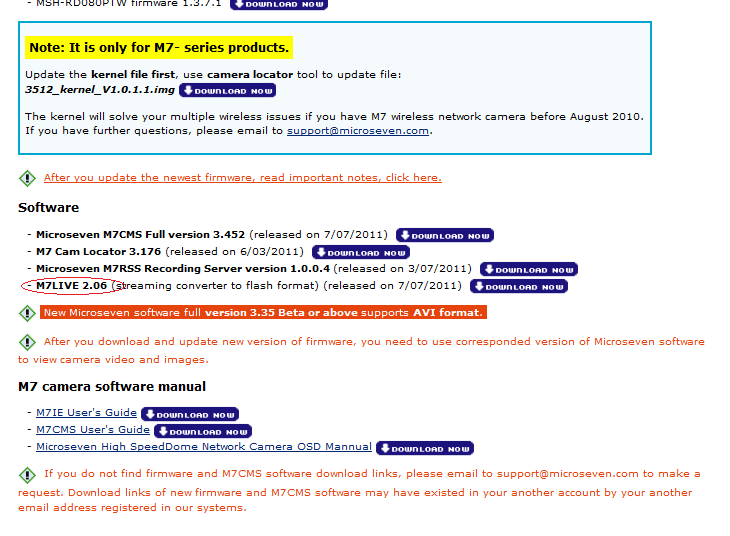

6. When you finish it, go to download M7LIVE software program from download menu on www.microseven.com

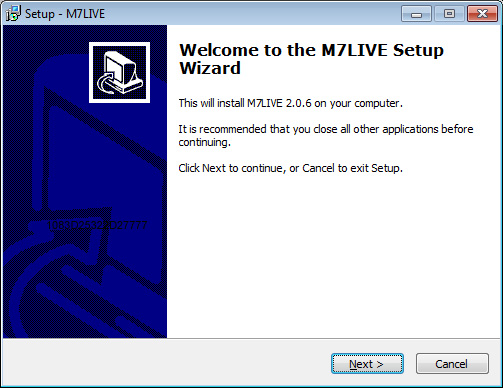

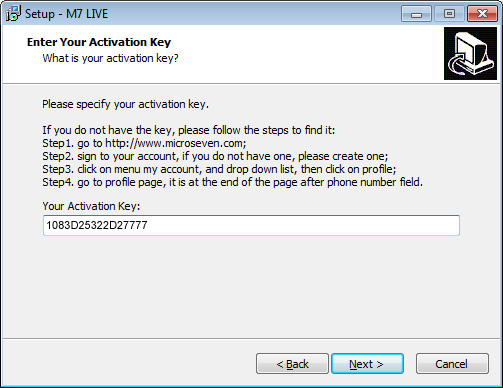

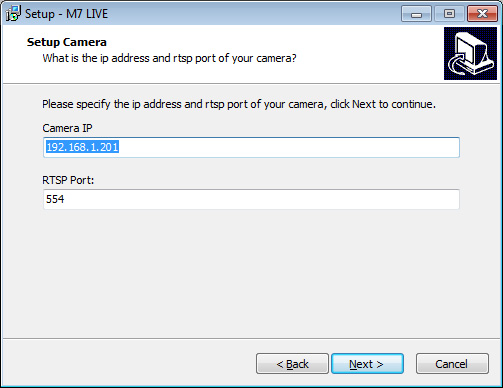

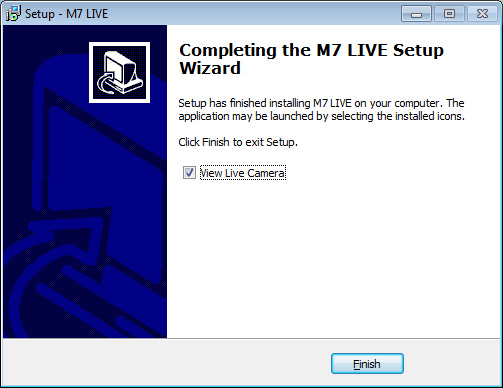

7. After you downloaded it, then to install M7LIVE on your PC or server, and follow the steps and click next. If you have Activation Key, IP address and RTSP ports different than default numbers, you can modify them during the installation. By click Finish to complete your installation of M7LIVE




8. Go to you current PC or server to open port 1935, port 7000 from Windows Firewall. To make sure you make current PC or server as static IP in your LAN network

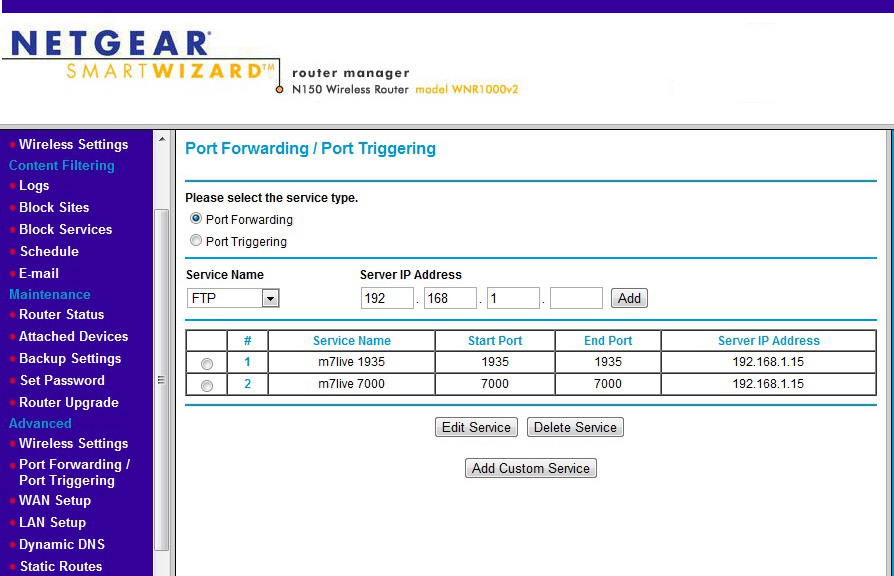

9. Then you go to your router to do port forwarding on port 1935 (RTMP port), port 7000, here is the example, assuming your PC static IP is 192.168.1.15, then you will do port forwarding port 1935 (RTMP port) and port 7000 to 192.168.1.15

10. Go to get your Internet IP address from your router, or go to URL http://www.whatismyip.com to find the Internet IP address

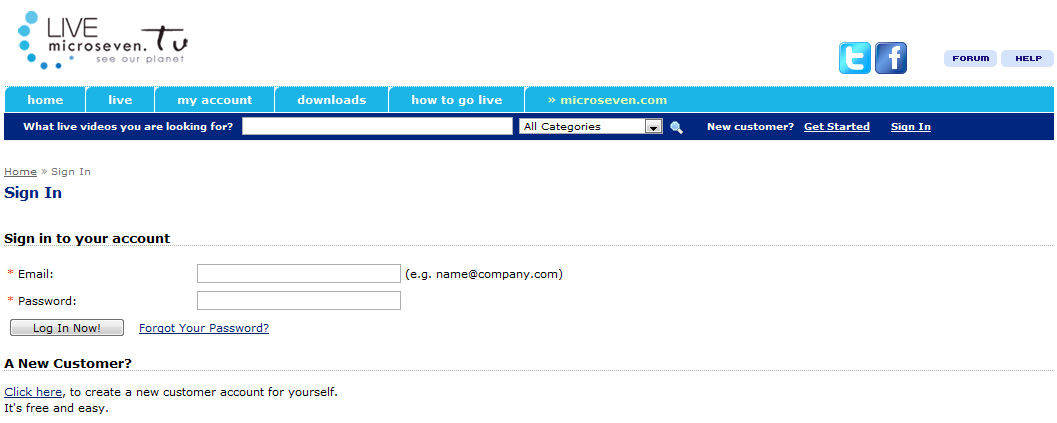

11. Setup your camera on tool www.microseven.tv to get html script code

12. For M7Live single camera version

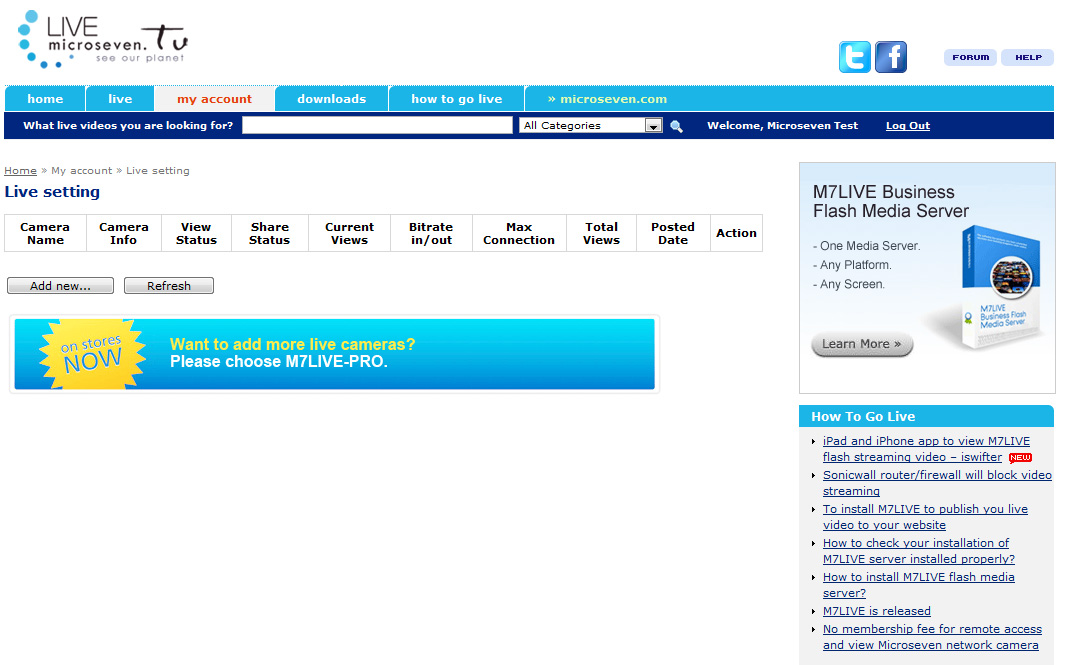

    1. Add your camera to microseven.tv

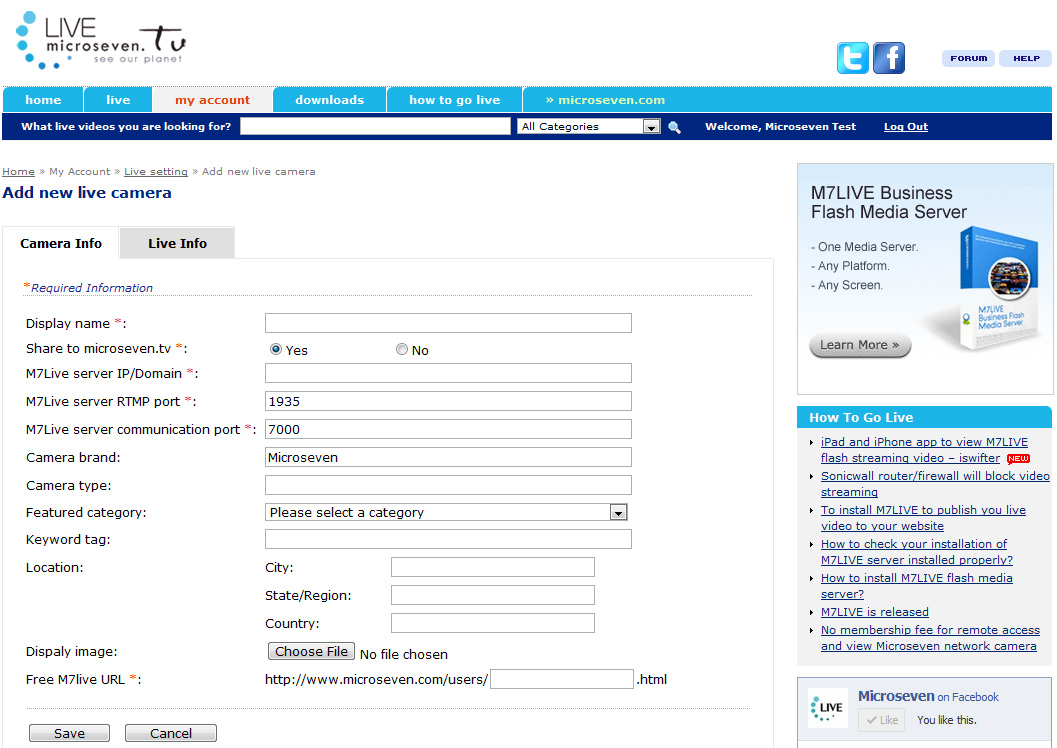

       - Set camera configuration parameters
       You need to input, must full these fields:
       1. Camera ID [It will be automatically created by system for M7LIVE licensed version]
       2. Display name
       3. Do you want camera video to shared or not shared ( public or private)
       4. View status Display Enable or Disable on microseven.tv [for M7LIVE licensed version]
       6. M7LIVE server [PC or server] Internet IP address, or you can use domain name for this Internet IP address
       7. M7LIVE server [PC or server] RTMP port 1935 as default
       8. M7LIVE server [PC or server] Microseven communication port 7000
       9. Camera Internet IP address, or you can use domain name for this Internet IP address [for M7LIVE licensed version]
       10. Camera RTSP port default 554 port [for M7LIVE licensed version]
       11. Max connection from Internet users [for M7LIVE licensed version]
       12. You need a URL which is for all the devices where it has Internet browser

       When you finish, you need to click on Save to save all the settings

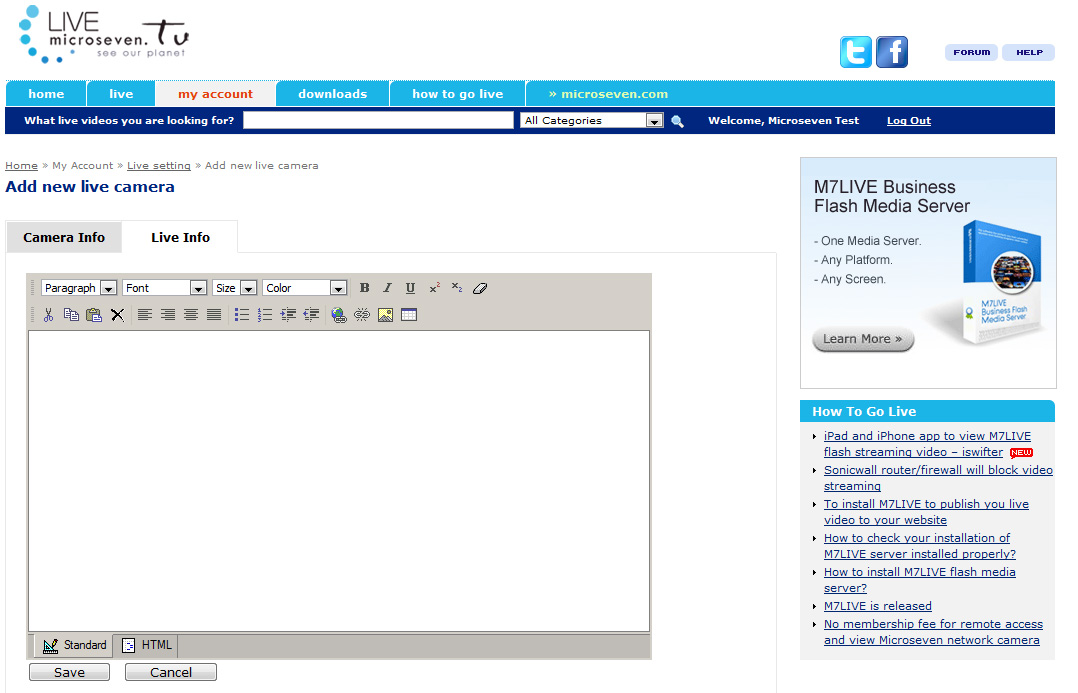

    2. You can add a description (camera info) the camera

    3. Click on Save to save your settings, and it will direct you to camera list page

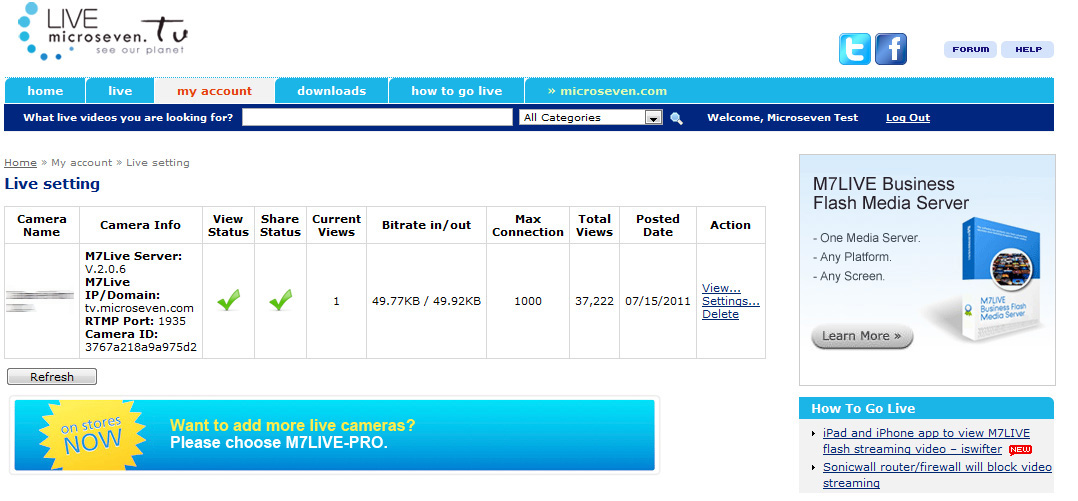

       The camera is in the list, it displays in the following:
       • Camera name
       • Camera info – M7LIVE Server version #, M7LIVE IP/Domain, RTMP Port, Camera ID
       • View Status
       • Shared Status
       • Current Views
       • Bitrate in/out
       • Max Connection
       • Total Views
       • Post Date
       • Action – View, Settings …, Delete

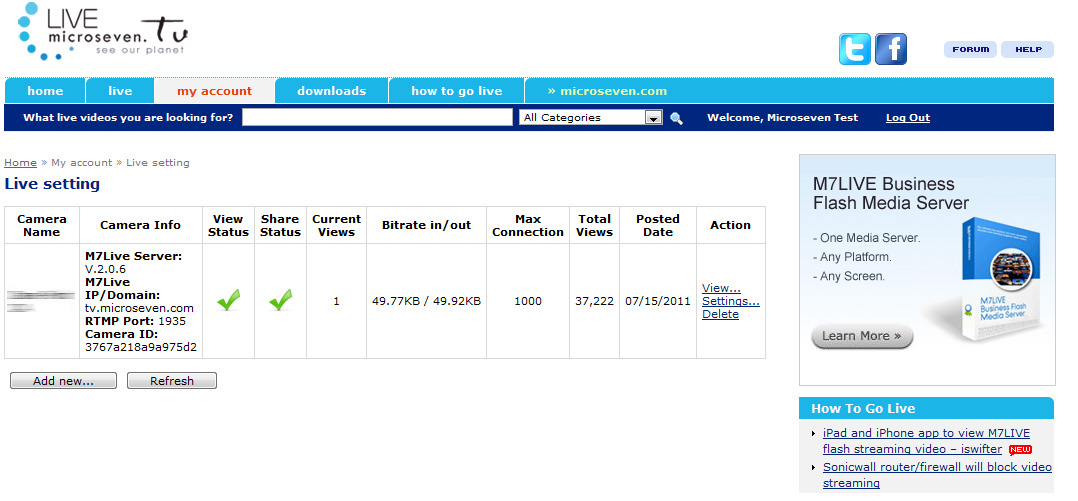

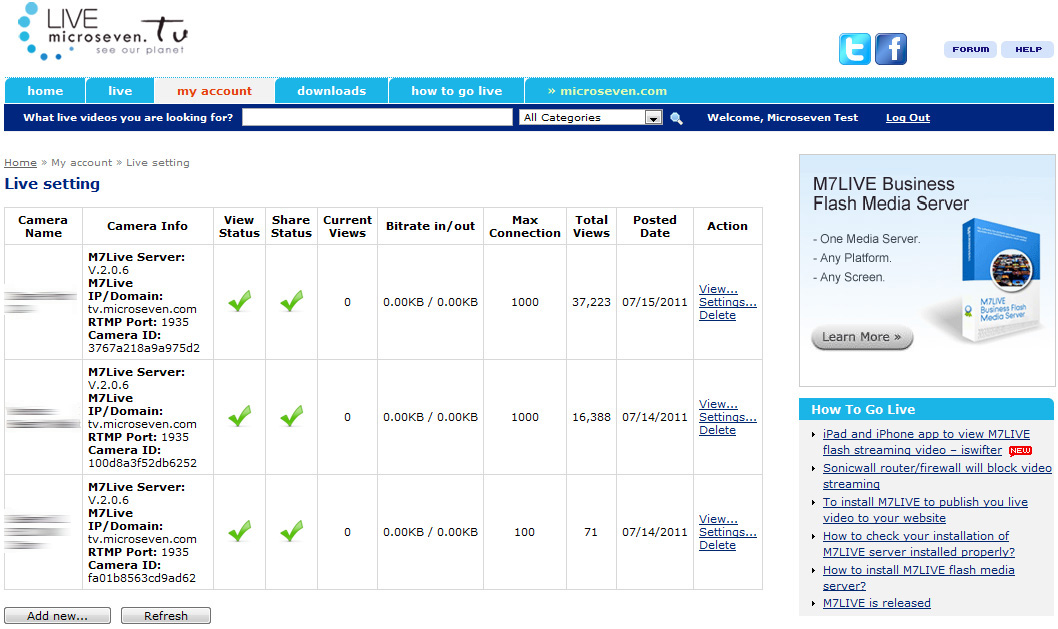

13. For M7LIVE multiple camera version (licensed version):
    1. Allow you add more than one camera using add new button

    2. You will have all the list of live camera video in the list after you added them

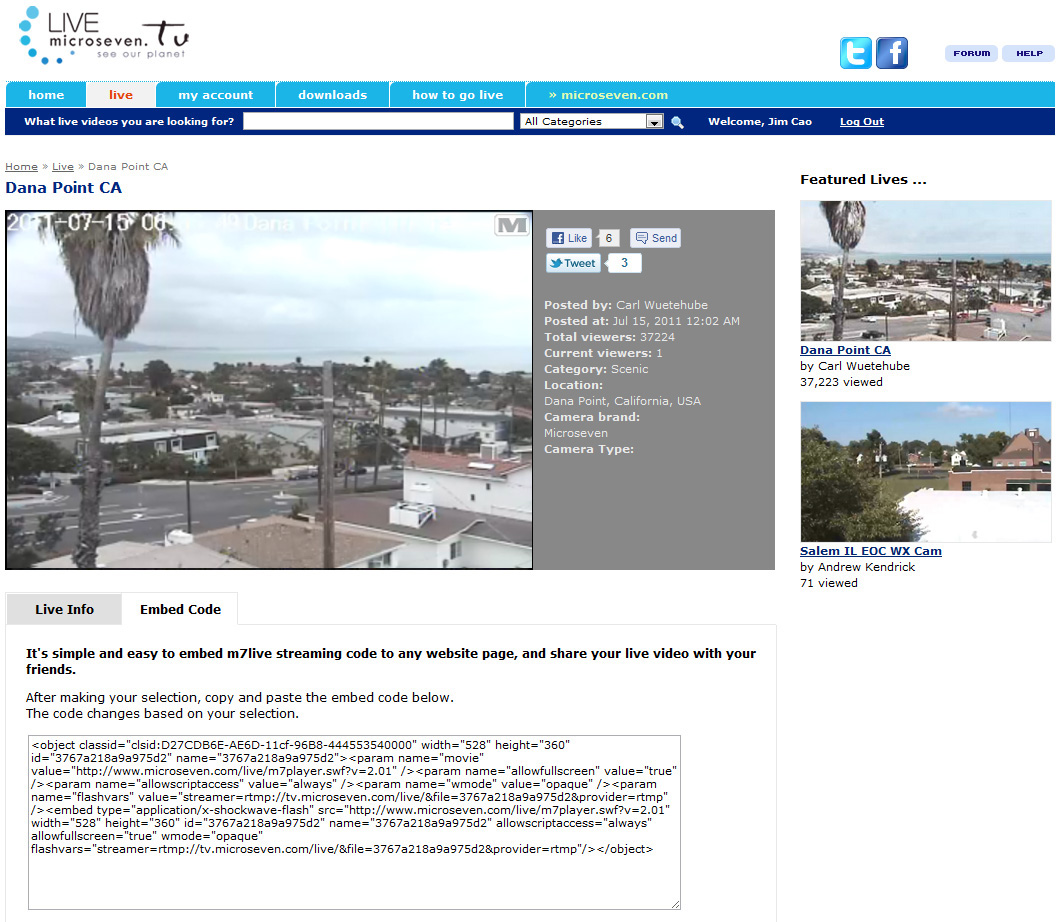

14. Click View in the table, you can view live video from camera with www.microseven.tv

15. You can now copy and paste this camera embed html script code to any websites

Go to App Store, search for iswifter
To get it installed.
Notes: you do not have to subscriber it. This program is to make Flash video display on iPad, iPhone.
I have snapshots attached, may help you.

URL for your iPad is

http://www.microseven.com/users/danapointcam.html

Support
Microseven

Any Sonicwall router/firewall will block video streaming. If you have such firewall, you need to install camera(s) outside your Sonicwall firewall.
Support
Microseven

If you have questions how to do it, we will send instruction to you and help you to set it up. Our support email is support@microseven.com.

1. Check port 1935 and 7000 if there are opened on your Windows 7 OS
To do it:
Go to run, type cmd, in the DOS prompt, type command “netstat -ano”
Then you will go to find 1935 and 7000 ports in the list.

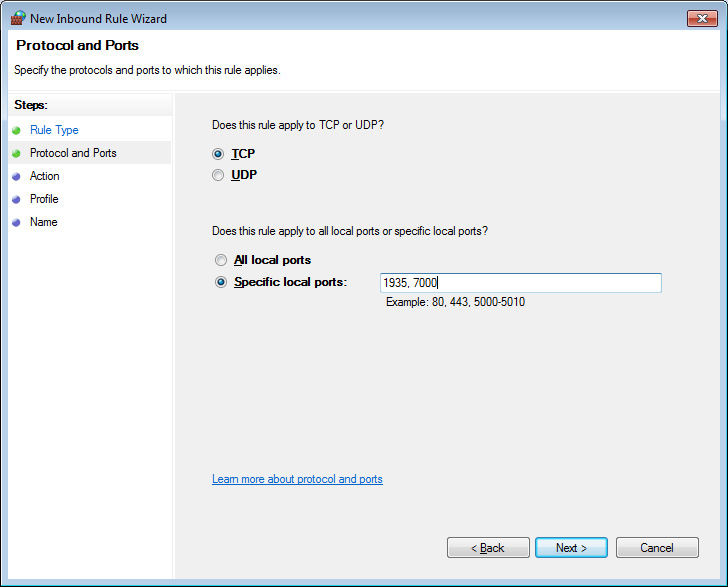

2. Open 1935 port and 7000 port from your Windows firewall, for Windows 7 OS, add ports in inbound rule for 1935 port and 7000 port with TCP protocol.

3. Open port forwarding in your router for port 1935, and port 7000.

Once these checks completed, go to microseven.tv your account to add camera in live setting. It will automatically generate embedded script code for you. Then you can copy and paste it to any website. And your camera streaming video will be displayed on sites you have published it.

If you have any questions of this instruction, please email us at support@microseven.com, we will help you to set your camera streaming video up on your website.

How to install M7LIVE flash media server:

Step1. download it from http://download.microseven.com/M7LIVESetup-Single-2.06.exe
Step2. save it on your desktop
Step3. unzip it from WinRAR tool
Step4. run M7LIVESetup.exe on your windows OS
Step5. You need to have Microseven network camera IP address ready
Step6. to check camera end RTSP port is open which is port 554 as default
Step7. to finish the installation
Step8. to open port 1935 from your windows OS firewall as exceptions (term as inbound if you use Windows 7)
Step9. to open port 7000 from your windows OS firemwall as exceptions (term as inbound if you use Windows 7)
Step10. to open port 1935 from your router (port forwarding)
Step11. view javascript code of the flashstreaming and modify 127.0.0.1 to your Internet IP address
Step12. save the javascript code, and copy it and paste it to your website

The following is M7LIVE API, after you run M7LIVE, end up will be the scripts page, and you will copy and paste it in your website to run video.

Notes:

1. width, height, rtmp://you_ip_address need to be modified.
2. open port 1935, and 7000 on your PC where you installed M7LIVE.

M7LIVE flash media server is released. It is powerful tool converting live H.264 codec to flash live streaming video on the web. How is live streaming video from M7LIVE!

There are no membership fee and no any fee for view camera live video online over the Internet.
