How to view microseven network camera via RTSP protocol?

without comments

The following steps is shown to setup RTSP in your account at www.microseven.com. You can view camera(s) remotely using any brand name of Internet browsers. Microseven

Step1 Open microseven.com, login to your account.

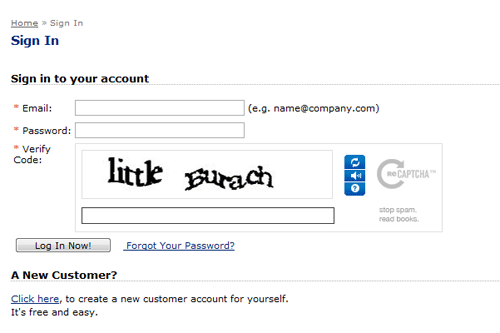

login to microseven.com

Step2 Go to My Account > Online Camera > Add new camera, add your M7 camera(s).

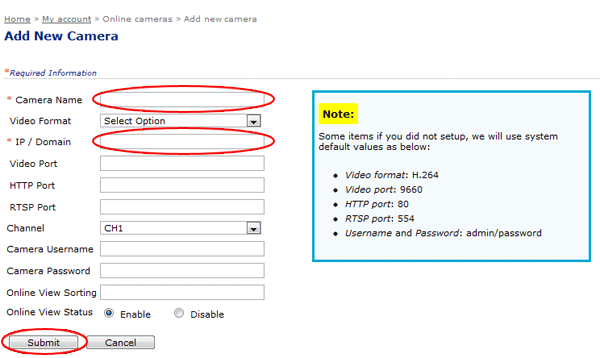

Add new m7 camera

Step3 Set ‘Camera Name’ and ‘IP/Domain’.

Step4 Click ‘Submit’ button, go to Camera Overview page, the new camera is listed.

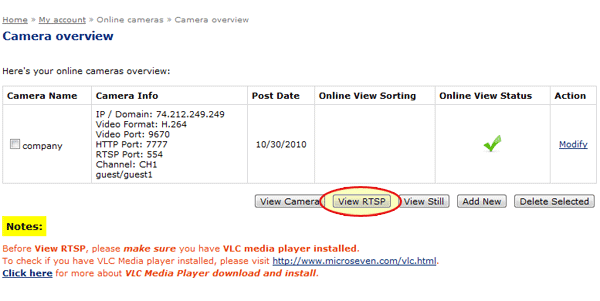

online camera overview

Step5 Click ‘View RTSP’ button, go to Camera RTSP View page.

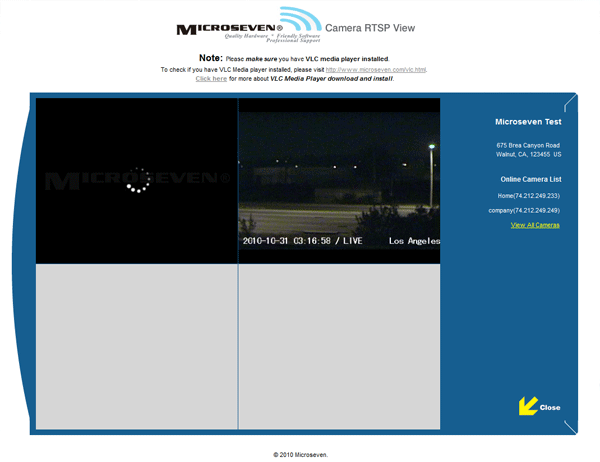

Camera RTSP View

We need your feedback for the interface of our RTSP protocol app at www.microseven.com.

Written by microseven

November 13th, 2010 at 11:30 pm

25 ft to view license plate at parking lot

without comments

Demo of 25ft away from M7 network camera to licese plate picture. Live snapshot is from M7-CX550WS model and lens is M7-M13RV0515DIRCS-13.

25 ft from m7 network camera ( 5mm-15mm mega pixel lens)

Written by microseven

October 25th, 2010 at 12:07 pm

Microphone for Microseven network camera

with one comment

Microphone for Microseven network camera:

tested speakers in our lab

microphone tested in our labe

wires connected for microphone and speakers

m7cms GUI

M7IE GUI

Written by microseven

September 20th, 2010 at 1:23 am

16 GB SD SDHC memory card is working just fine on M7-RC550WS network camera

without comments

A UK customer had a 4 GB SD memory card to start off upgraded to a 16 GB SD SDHC memory card (Kingston), and all working just fine.

Written by microseven

September 16th, 2010 at 10:22 pm

Where can I download updated firmware?

without comments

Go to http://www.microseven.com, then click on downloads button on the top menu. You need to log in to your account to download updated firmware.

Written by microseven

September 15th, 2010 at 11:17 pm

How to flip image on M7-CX550WS network camera?

without comments

Step 1: setup M7-CX550WS network camera. Use a screw driver to unscrew 2 screws from bracket base on camera end.

snapshot 1 - flip image - M7-CX550WS network camera

snapshot 2 - flip image - M7-CX550WS network camera

Step 2: There are two holes on the camera both sides, up and bottom. You can switch bracket base moving from up to the bottom side of the camera.

snapshot 3 - flip image - M7-CX550WS network camera

snapshot 4 - flip image - M7-CX550WS network camera

snapshot 5 - flip image - M7-CX550WS network camera

Written by microseven

September 14th, 2010 at 2:12 pm

How to change lens for M7-RD550PTWS?

without comments

How to change lens for M7-RD550PTWS?

Step 1: Softly hold camera’ shell, move up direction until you hear the ‘click’ sound.

Step 2: Remove 4 pcs of PM2*5 screws.

Step 3: Open the screw and remove old lens, then replace with new lens and adjust lens until video clear. Then softly ties the lens screw.

Step 4: Place screws back to the board and tightly screw in screws on board. Then put shell back to camera.

Written by microseven

August 29th, 2010 at 10:47 am

Posted in How To

Tagged with ,

How to make two way audio work for M7-CD550WS?

without comments

How to make two way audio work for M7-CD550WS?

I have tested.

Please see pictures attached what I tested.

1. My laptop SONY VGN-CR231E
2. M7-CD080WS
3. Two Mics one links to M7-CD550W, and other links to laptop
4. Two coupler from RadioShack 1/8 (3.5mm) Stereo Female to 1/8 (3.5mm) Stereo Female
5. Two 3-ft (91.cm) Shield Y-Adapter Audio Cable from RadioShack
6. One set of speakers
7. Microseven M7CMS software

You need to link them together, Y-Adapter Audio Cable by using its one of two to link to M7-CD550WS audio in and audio out. I plan to get these cable as one from factory later.

Written by microseven

August 29th, 2010 at 10:31 am

Posted in How To

Tagged with ,

How to test webcam on your phone?

without comments

G1, iPhone and blackberry and etc.
Try the following URL to test:

http://www.microseven.com/webcam.html

Refresh itself every 3 seconds (or however long you set for your camera. On our demo we recommend 3 second intervals to conserve your phone’s battery power), there are live still images.

http://74.212.249.249:7777/snapshot_ch01.jpg (Static snapshot)

You need to refresh to see the live still image.

Written by microseven

August 27th, 2010 at 1:42 pm

How to adjust CCD sensor by Microseven software?

without comments

Step 1 Open M7CMS, enter User ID and Password, default is admin and password. Main window will pop up.

Network Camera | Microseven

Step 2 Right click on video screen to pull up camera short-cut menu or click camera in the camera list, then Camera Setup properties dialog pops up.

Step 3 Go to tab Video > CCD Settings tab.

Network Camera | Microseven

Step 4 Set Mirror mode, White Balance, AGC, ALC/ELC, Blacklight compensation, Anti-Scintillation, Color Mode, Grade, Auto IRIS level regulator, Sharpening adjustment, and etc.

Network Camera | Microseven

Step 5 Click ‘OK’ to close ‘CCD setup’ pop window.

Written by microseven

August 27th, 2010 at 1:32 pm

How to change image color if video images turn to black and white?

without comments

Step 1 Double-click Network Camera | Microseven icon to open M7CMS.
Enter User ID and Password, our default User ID and Password are ‘admin’ and ‘password’. Main page of window pops up.

Network Camera | Microseven

Step 2 Select the camera you need to change color. Right click the video screen to pull up camera short-cut menu or click the camera in the camera list, then theCamera Setup properties dialog pops up.

Step 3 Go to Video > Color to Black & White Setup tab.

Network Camera | Microseven

Step 4 Enable this function and set a schedule.

Step 5 Click ‘Apply’ to save and complete setup.

Written by microseven

August 27th, 2010 at 1:07 pm

How to upgrade new firmware?

with 4 comments

Step 1 Click Microseven IP locator icon Network Camera | Microseven , Microseven IP locator window will pop up.

Network Camera | Microseven

Step 2 Click on ‘Search’ in Locator.

Network Camera | Microseven

Step 3 Highlight on IP address and double click, A pop up window is up.

Network Camera | Microseven

Network Camera | Microseven Current default gateway from factory is 192.168.1.1 for our example here. You need to find out your own default gateway to match.
Step 4 Click ‘Browse…’, Open file window pops up, select the lastest version of firmware then click ‘Open’.

Network Camera | Microseven

Step 5 Then click on ‘Upgrade’.

Network Camera | Microseven

Step 6 Confirmation pop window to ask you if you want to go to next step.

Network Camera | Microseven

Step 7 Click ‘Yes’, now wait for update to complete.

Network Camera | Microseven

Step 8 You will be notified ‘Firmware upgraded successfully’. Click ‘Close’.

Network Camera | Microseven

Step 9 Go back to Microseven camera locator again, do search to check if new version of firmware has been updated.

Network Camera | Microseven

Written by microseven

August 27th, 2010 at 12:56 pm

How to record video on PC or server?

without comments

Step 1 Open Microseven software, enter User ID and Password, default User ID and Password is admin and password.

Network Camera | Microseven

Step 2 Click OK, main page pops up.

Network Camera | Microseven

Step 3 Click ‘Schedule Record’ radio button and click ‘Schedule REC Setting…’ button.

Step 4 Table of schedule page pops up.

Network Camera | Microseven

Step 5 Set up your value to table.

Network Camera | Microseven
For example:
– Select a Camera: 192.168.1.201
– Continuous recording for 24/7
– Click check box on Schedule REC Enable
– File Save Path: Any drivers can be selected.

Network Camera | Microseven

– Keep Recording File Days: 10 (For reference, 4 GB is for 24 hours in CIF mode)

Step 6 Click OK to complete.

Step 7 Playback your recording file, click on Playback icon.

Step 8 Select date and time you want to playback recorded video files, click Play.

Step 9 Click View live camera(s) video icon to go back to live mode.

Network Camera | Microseven

Step 10 Click on ‘Manual Record’ radio button to stop recording video on your PC or server.

Network Camera | Microseven

Written by microseven

August 27th, 2010 at 12:36 pm

How to embed still image to your website?

without comments

Before you are ready for still image your website for your webcam, your Microseven network camera has been set up view on internet.
Then to do the following set up to embed still image on your website.

Step 1 Open M7CMS to view your camera.

Network Camera | Microseven

Step 2 Right click on video and select Properties from shortcut menu or click camera name from camera list, for example ‘Los Angeles, California’. Go to next properties page.

Step 3 Go to Capture & Snapshot > Camera Built-in snapshot tab.

Step 4 Check on ‘Enable camera built-in snapshot’, and set up Camera built-in snapshot interval. (3 seconds is default and recommended)

Network Camera | Microseven

Step 5 Then click ‘Apply’.

Network Camera | Microseven

Step 6 Click OK on Camera built-in snapshot pop window, and click Close on ‘Configuration Settings’ window.

Then you need to copy embedded scripts to your html page in your website.

Network Camera | Microseven
ip=xxx.xxx.xxx.xxx: Your IP address, for example, ip=74.212.249.249

ORNetwork Camera | Microseven
ip=xxx.xxx.xxx: Your domain name, if you have use dyndns.org domain name with your IP address, for example, ip=m7cam.microseven.com.

Port: Port is web port number, for example 80
Channel: Channel is from 1 – 4, for example 1 for you use it for camera only; if you have 4 channel encoder, you may need 4 channels, 1, 2, 3, and 4 for four different channels.

The following live embedded script code is Microseven demo:

Network Camera | Microseven
ORNetwork Camera | Microseven

The single frame is: http://m7cam.microseven.com:7777/snapshot_ch01.jpg

Written by microseven

August 27th, 2010 at 12:12 pm

How to use your phone to view live still video?

without comments

Before you are ready for viewing still image on your cell phone, your Microseven network camera must have been set up for viewing on the internet. Then to do the following set up to embed still image on your website.

Step 1 Login to M7CMS.

Network Camera | Microseven

Step 2 Right click on video and select Properties from shortcut menu or click camera name from camera list, then camera setup properties dialog pop up.

Step 3 Go to Capture & Snapshot > Camera Built-in snapshot tab.

Network Camera | Microseven

Step 4 Check on ‘Enable camera built-in snapshot’, and Set up Camera built-in snapshot interval (default and recommended is 3 seconds)

Step 5 Then click ‘Apply’, you will see the Setup successfully message.

Network Camera | Microseven

Step 6 Click OK on Camera built-in snapshot pop window, and click Close.

Step 7 View camera snapshot with your smartphone.

Enter the address:
http://www.microseven.com/webcam.html?ip=xxx.xxx.xxx.xxx&port=xx&channel=x&w=xxx&h=xxx
Or
http://www.microseven.com/webcam.html?ip=xxx.xxx.xxx&port=xx&channel=x&w=xxx&h=xxx
ip=xxx.xxx.xxx.xxx –> your IP address
ip=xxx.xxx.xxx –> your domain address if you have use dyndns.org domain name with your IP address

For example, the parameters for Microseven demo are:
ip = 74.212.249.249
port = 7777 (web port – no video port 9660)
channel = 1 (camera only is 1 default)
w = 352 (default)
h = 240 (default)

So, the demo link address is :
https://www.microseven.com/webcam.html?ip=74.212.249.249&port=7777&channel=1&w=352&h=240

Enter http://xxx.xxx.xxx.xxx:xx/snapshot_ch01.jpg

Microseven demo links:
https://www.microseven.com/webcam.html?ip=74.212.249.249&port=7777&channel=1&w=352&h=240
https://m7cam.microseven.com:7777/snapshot_ch01.jpg

Written by microseven

August 27th, 2010 at 11:42 am

How to view Microseven network camera over the Internet?

with one comment

Before you view Microseven network camera over internet, you have to open port forwarding on your router. Example, you opened web port for 81, device port from 9660-9661. Then you go to IE browser, enterhttp://whatismyip.com to Address Bar and find out what is your internet IP address.

Network Camera | Microseven

After you found the IP address from whatismyip.com, in this example it is 66.215.70.112. Enter http://66.215.70.112:81 to Address Bar in IE browser.

Network Camera | Microseven

Default Username: admin
Default password: password
Device port: 9660

Network Camera | Microseven

Written by microseven

August 27th, 2010 at 6:45 am

How to make DNS change to have your email sent out?

without comments

Sometimes, your email can not be sent out when motion detection has been triggered. You may need to check your IP with DNS.

Step 1 To set up DNS statically, first login M7CMS.

Network Camera | Microseven

Step 2 Right click on the live camera screen to pull up camera short-cut menu and select Properties, or click on camera name of Camera List. Camera setup properties dialog pops up.

Step 3 Select Camera > Network Settings tab.

Network Camera | Microseven

Step 4 Go to DNS type, select DNS in the drop down list.

Network Camera | Microseven

Step 5 Enter DNS number which is from ISP. And click ‘Apply’.

Network Camera | Microseven

Step 6 You will see the Setup successfully message. And it has been modified. Then check your email again.

Network Camera | Microseven

Written by microseven

August 27th, 2010 at 5:50 am

How To Setup a 2nd Router as an Access Point & Extend Your Wireless Network?

without comments

Do you have two routers in the house and need to use one of them wireless access point (WAP) instead of a router? You may want to do this would to extend the reach of your wireless or wired network or simply to have a second access point on the router.

Here’s how to set up your second router as an access point. We’ll use the Linksys Wrt54G router for this example:

  • First take a network cord and hook one end up to your PC (laptop or otherwise) and the other end up to a numbered port on your wrt54g (second) router. The numbered ports are the ones bunched together on the right side of the router (looking at it from the back of the router – see photo below). Make sure you aren’t connecting to the internet port.
  • Open the web browser on your PC, type in 192.168.1.1 (assuming the wrt54g is set at its default ip) and hit enter. This will bring up the setup page for the router.
  • In the router setup page, disable the DHCP server (again, this is on the second wrt54g of course)
  • Now in the router setup page, renumber the second WRT54G local IP Address to be with in the subnet of the main router, but outside it’s DHCP server range. Like 192.168.1.2 (dhcp starts with 192.168.1.100 up to 192.168.1.150)
  • Set up your wireless ssid and other wireless settings the exact same as on your main wireless router.
  • Save Settings and unhook the network cord from your PC and wrt54g
  • Now you can connect the incoming lan cable from your main network (or main router) to one of the numbered ports on the wrt54g. This basically turns your wrt54g into a switch or wireless access point. Do not plug anything into the internet port on this second router.
That’s it. For my house I have two Linksys wrt54g wireless routers. The first one is used as a router and wireless access point and the second one is just an extender of that wireless (and wired) network. Since they have the same SSID, I can drag my laptop from one end of the house nearer the main router to the other end of the house nearer the second router (access point) and always have a very strong wireless signal. For other models of routers the steps and concept would be basically the same. There is no need for a hackable firmware updated like DD-WRT, but you can still do this with that firmware also of course. I use the DD-WRT on my main router for now and the standard Linksys firmware for the second router (now a Wireless Access Point 🙂 )

Written by microseven

August 26th, 2010 at 6:42 pm

How to view live video and view still image in microseven.com?

without comments

*** View live video in microseven.com

  1. Open IE browser, go to http://www.microseven.com, login to your account. Your default account is your e-mail address, and your default password is password.Network Camera | Microseven
  2. After logging into your account, ‘Camera Overview’ is your default page.Network Camera | Microseven
  3. Click ‘Add New’, go to Add Camera page, and input full all the information of your Microseven network camera.Network Camera | Microseven
  4. Click ‘Submit’, Then you see the camera has been added in the list.Network Camera | Microseven
  5. Now click ‘View Camera’, live Video is displayed in microseven.comNetwork Camera | Microseven

Network Camera | Microseven Before you view video and view still, make sure you have opened firmware in your router, called port forwarding.

For example:

Network Camera | Microseven

To find out what is your internet ip address, go to http://whatismyip.com

Network Camera | Microseven

*** View still image in microseven.com

  1. To make View Still image working, please make sure the following setup is completed: Go to Camera built-in snapshot and check Enable and best recommendation is set 3 second, then click ‘Apply’.Network Camera | Microseven
  2. Then click OK to finish.Network Camera | Microseven
  3. Click ‘View Still’ link on the menu (second line from top of microseven.com)Network Camera | Microseven
  4. Still image is displayed in microseven.comNetwork Camera | Microseven

Written by microseven

August 25th, 2010 at 8:57 am

How to setup motion detection and email configuration to send motion detection snapshot by email?

with 3 comments

Step 1 Double-click Network Camera | Microseven icon to open Microseven software.

Network Camera | Microseven

Step 2 Enter User ID and Password, our default User ID and Password are ‘admin’ and ‘password’. Microseven main page pops up.

Network Camera | Microseven

Step 3 Right click on the live camera screen to pull up camera short-cut menu and select Properties, or click the camera name of Camera List. Camera setup properties dialog pops up.

Step 4 Go to Camera > Email Settings tab.

Network Camera | Microseven
Step 5 The example uses gmail.com information, Check ‘Apply to motion detection’.

  1. SMTP server: smtp.gmail.com
  2. Send from: microsevensystems@gmail.com
  3. Account name: microsevensystems@gmail.com
  4. Password: *******
  5. Send to: support@microseven.com
  6. Check Sending snapshot
  7. Show ‘From’ as: Support Team
  8. Subject: Test

Step 6 Click ‘Apply’ and then click ‘OK’.

Network Camera | Microseven

Step 7 Go to Motion Detect tab.

Note: Sensitivity level, 1-9, 9 is the highest sensitivity.

Network Camera | Microseven

Step 8 Click ‘Set motion detect area’, and motion detect area window pops up.

Network Camera | Microseven

Step 9 Click ‘Select All’ then click ‘OK’

Network Camera | Microseven

Step 10 Go to Detection > Motion Detection tab.

Network Camera | Microseven

  1. Check Snapshot ‘Channel 1’
  2. Check ‘Set motion detect on schedule’
  3. Only ‘Set duration 1’ to 12:00:00 AM to 11:59:59 PM

Step 11 Click Apply.

Network Camera | Microseven

Step 12 Then click ‘Apply to everyday’.

Network Camera | Microseven

Step 13 Exit properties configuration page and go back to main window.

Network Camera | Microseven

Step 14 Trigger motion on.

Network Camera | Microseven

SStep 15 While motion is detected, video will have red frame alert and it triggers the email alert.

Network Camera | Microseven

Step 16 You check your email inbox.

Network Camera | Microseven

Network Camera | MicrosevenIf you cannot receive emails, please check firewall if it is on, or you can check DNS need to be static.

For example, our company demo DNS is static DNS:

  1. Primary DNS is 64.60.0.17
  2. Secondary DNS is 64.60.0.18

Step 17 To change DNS from Dynamic one to static DNS, please go to tab ‘Network…’ on camera properties configuration page.

Network Camera | Microseven

Step 18 Click ‘Apply’ to finish. You will receive emails when motion is triggered.

Network Camera | Microseven

Written by microseven

August 24th, 2010 at 5:05 pm
